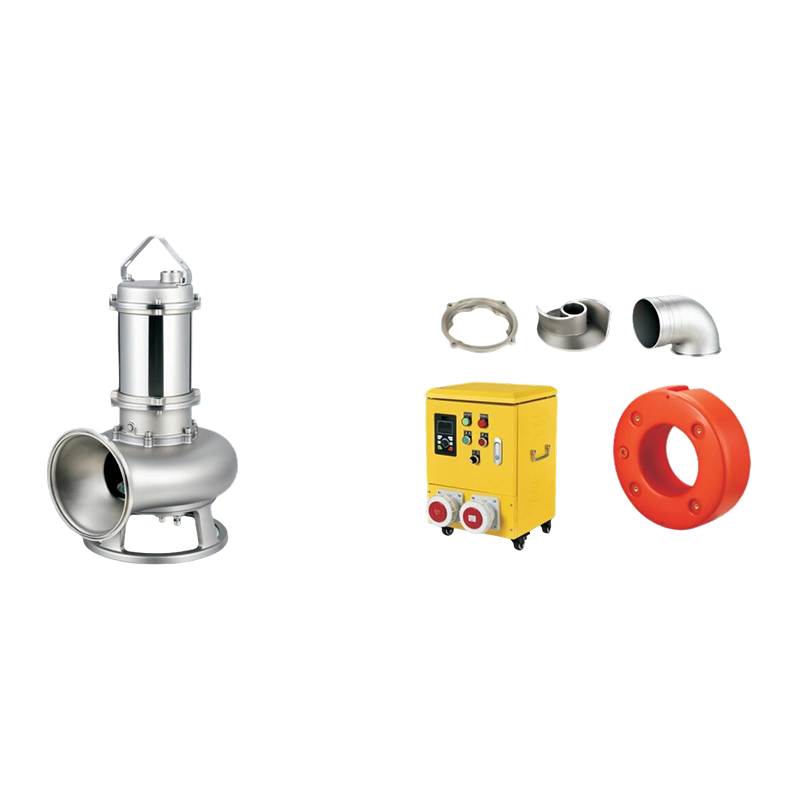

Stainless Steel Electric Cutter Pump (WQS Series)

What a Cutter Mechanism Actually Does—and When You Need One

Standard submersible drainage pumps are designed for water transfer—their impellers move fluid efficiently but have no capability to process the fibrous, stringy, or semi-solid material commonly present in municipal wastewater, agricultural runoff, flood debris, and industrial effluent. When this type of material enters a conventional pump, it wraps around the impeller shaft, accumulates in the volute, and either reduces flow progressively or causes a hard blockage that requires manual clearance.

A cutter pump addresses this limitation directly. The cutting mechanism—typically a hardened steel cutter ring or blade assembly positioned at the pump inlet in close tolerance with a stationary counter-blade—shreds fibrous material, rags, vegetation, and soft solids into fine particles before they reach the impeller. The result is a pump that can handle waste streams that would block a standard drainage pump within minutes, without requiring frequent manual intervention or the installation of upstream screening infrastructure.

The practical consequence is significant for emergency response and environmental drainage applications. Floodwater in urban environments carries textiles, plastic film, food waste, and organic debris. Agricultural drainage contains crop residue, root material, and manure slurry. Industrial and municipal applications involve fibrous sludge with solids content that no standard impeller can reliably pass. In all these contexts, a Stainless Steel Electric Cutter Pump eliminates the operational disruption of blockage clearance—and at Wuhu Qisheng Intelligent Equipment Co., Ltd., this anti-clogging reliability is treated as a fundamental performance requirement rather than a premium feature add-on.

Cutter Design Variants and Their Performance Trade-offs

Not all cutter pump mechanisms are engineered identically, and the design of the cutting assembly has a direct effect on cutting effectiveness, energy consumption, maintenance frequency, and the types of solids the pump can reliably process. Understanding the main design approaches helps match a cutter pump specification to the actual waste stream characteristics of a given application.

• Single cutter blade with fixed counter-ring — the most common configuration; the rotating blade works against a stationary serrated ring to shred material at the inlet. Simple construction, low maintenance, effective against fibrous material. Performance degrades gradually as blade and ring clearance increases with wear.
• Multi-blade cutter assembly — multiple cutting edges increase cutting frequency per revolution, improving throughput on dense fibrous material and reducing the torque spikes associated with single-blade designs encountering hard debris. More complex geometry increases replacement cost but extends effective service intervals in high-solid-content applications.
• Adjustable cutter clearance — premium designs allow the clearance between cutter blade and counter-ring to be adjusted in the field as wear progresses, restoring cutting performance without replacing components. Particularly valuable in continuous-duty municipal wastewater applications where shutdown for maintenance is costly.
• Hardened material specification — cutter blades in stainless steel construction pumps are typically made from hardened martensitic stainless or tool steel grades to maintain cutting edge geometry under abrasive conditions; softer blade materials wear rapidly when processing gritty or sandy waste streams.

Motor Protection Requirements for Submersible Cutter Pump Operation

Submersible cutter pumps operate in an inherently hostile environment for electrical components—fully or partially submerged in contaminated water, often in conditions that combine chemical exposure, abrasive particles, and variable temperature. Motor protection specification in this context is more demanding than for surface-mounted pump motors and deserves careful review during procurement.

Mechanical seal quality is the single most critical motor protection factor in submersible pump design. The mechanical seal prevents pumped fluid from migrating along the shaft into the motor chamber. In cutter pumps, the seal faces are exposed to the same aggressive media being cut and pumped—abrasive particles, chemical compounds, and fibrous material that can accelerate face wear and cause premature seal failure if the seal material specification does not match the application. Silicon carbide versus carbon-ceramic face combinations offer significantly different wear resistance profiles in abrasive versus chemically aggressive media.

Additional motor protection elements relevant to cutter pump applications include:

• Thermal overload protection (thermistor or thermostat in windings) — the cutting mechanism imposes variable torque loads as it processes debris; thermal protection prevents winding damage during extended high-load periods when the motor cannot shed heat to the surrounding fluid fast enough.
• Oil-filled motor chamber — many submersible pump motors use dielectric oil filling between the stator and rotor to provide both lubrication and an additional barrier against water ingress through the mechanical seal; this configuration extends protection life in applications where seal wear is accelerated.
• Cable entry seal integrity — the power cable entry point is a common ingress failure location in submersible pumps; a properly designed cable entry uses a compression gland with strain relief to prevent cable movement from opening the seal under repeated deployment and retrieval cycles.

Reviewing motor protection specifications alongside hydraulic performance data gives a more complete picture of long-term reliability than flow and head curves alone—particularly for emergency response equipment where failure in service carries consequences beyond simple inconvenience.

Installation Configurations and Operational Considerations for Cutter Pump Deployment

Cutter pumps are deployed in a wider range of installation configurations than standard drainage pumps, and the selected configuration affects both hydraulic performance and maintenance accessibility in ways that should be considered before finalizing an installation design.

The most common installation approaches for electric cutter pumps include portable submersible deployment—lowering the pump directly into a pit, sump, or floodwater body on a guide rope or rigid guide rail system—and fixed wet-well installation on auto-coupling brackets that allow the pump to be raised and lowered without personnel entering the wet well. For emergency and field applications, portable deployment dominates due to its flexibility. For permanent municipal or agricultural installations, auto-coupling systems significantly reduce maintenance labor costs over the equipment's service life.

Regardless of installation type, minimum submergence depth at the pump inlet must be maintained to prevent air ingestion, which causes cavitation damage to both the impeller and cutter mechanism. Most cutter pumps require a minimum of 200–400 mm of water above the inlet during operation; allowing the pump to run dry—even briefly—can cause irreversible cutting edge damage and impeller erosion within a single incident.

For the Stainless Steel Electric Cutter Pump in field drainage and rescue operations, the combination of stainless construction and a purpose-designed cutting mechanism means the equipment can be moved between dramatically different application types—urban flood response, agricultural channel clearing, construction dewatering—without the performance compromises that application-specific pump selections would impose. With engineering resources dedicated to hydraulic equipment for demanding field conditions, Wuhu Qisheng Intelligent Equipment Co., Ltd. supports customers in configuring cutter pump installations that deliver reliable performance across the full range of operating scenarios these units encounter.
