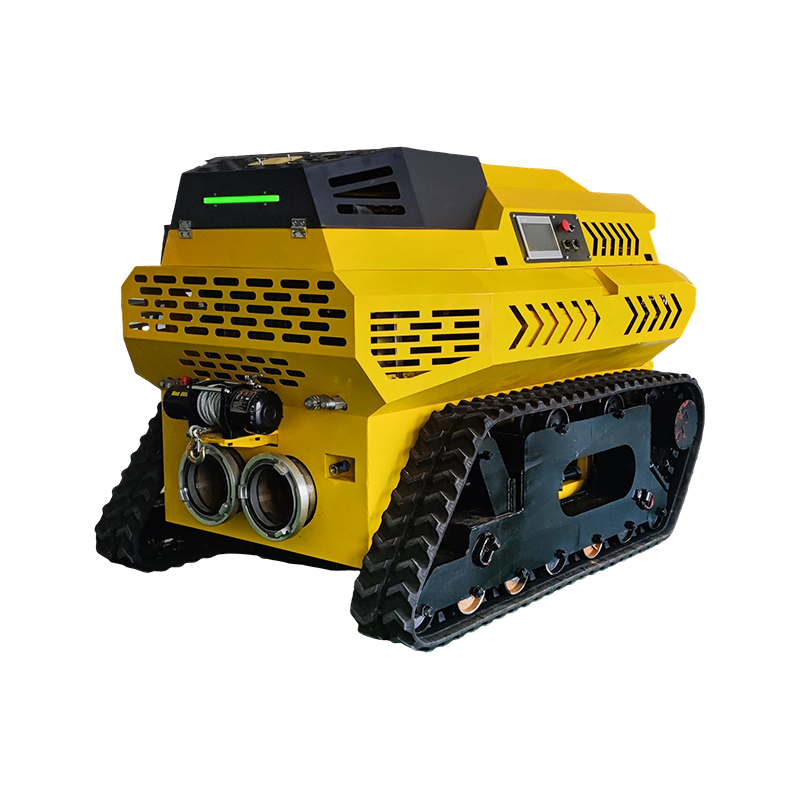

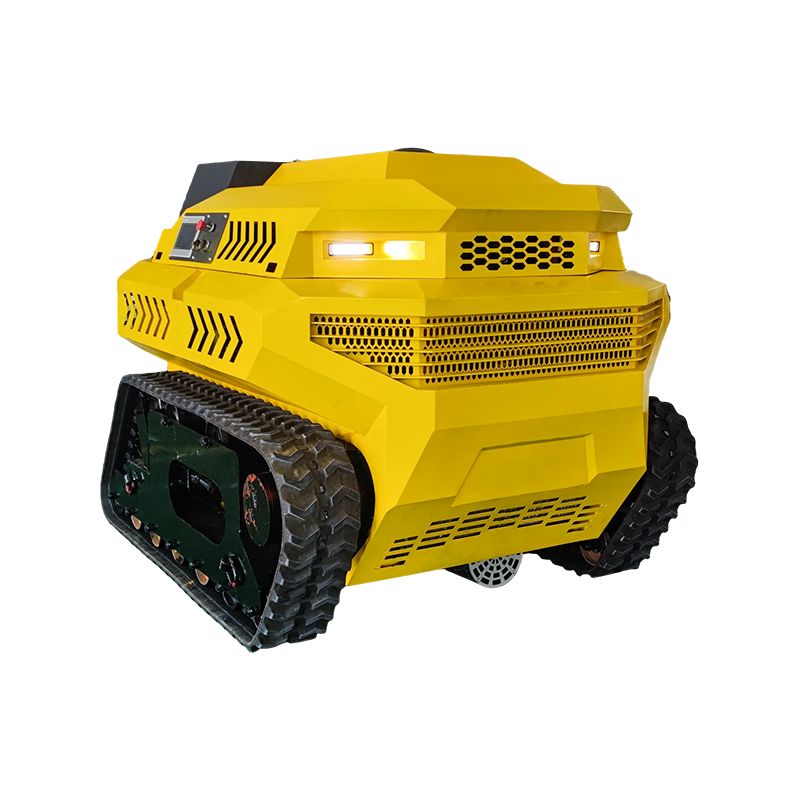

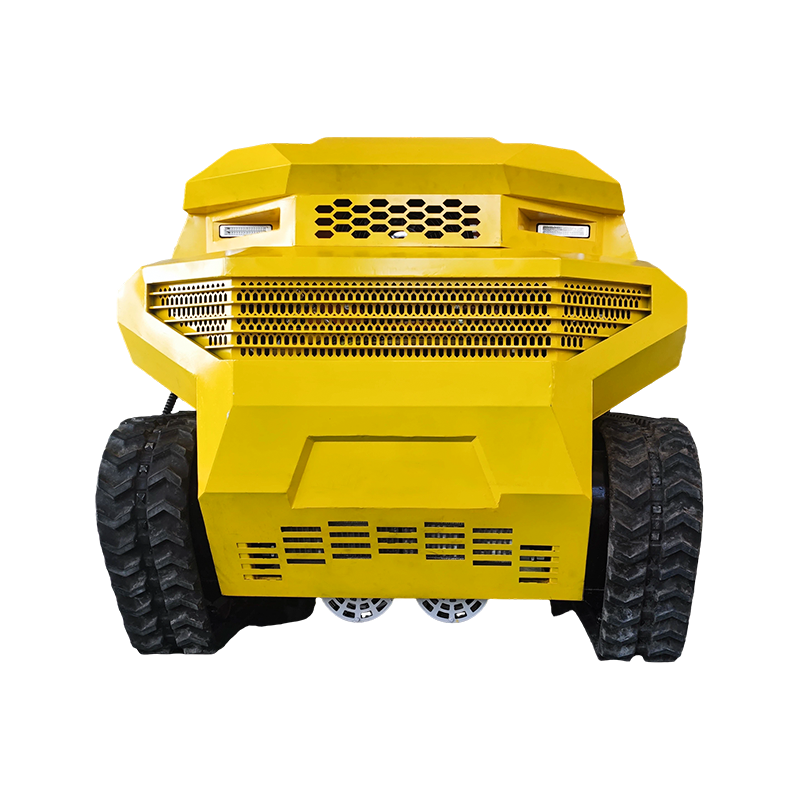

Tracked HighFlow Pumping Robot (10001300 m³/h)

Why use tracks instead of wheels for heavy pumping equipment?

Introduction to Tracked HighFlow Pumping Robot

The tracked highflow pumping robot represents a significant advancement in emergency drainage technology, combining high-flow hydraulic pumping capabilities with a robust tracked mobility system. Designed for operations in challenging environments, this robot addresses the limitations often encountered by wheeled drainage equipment. Equipped with two high-power hydraulic pumps, each capable of delivering a flow rate between 500 and 650 m³/h, the tracked highflow pumping robot achieves a total drainage capacity of up to 1300 m³/h. Its diesel-powered engine ensures continuous operation even in areas without access to external power sources, making it a reliable tool for emergency response and field operations.

Advantages of Tracked Locomotion in Complex Environments

The primary advantage of utilizing a tracked chassis for heavy pumping equipment lies in its superior off-road capability. Unlike wheels, tracks distribute the machine’s weight over a larger surface area, reducing ground pressure and preventing the robot from becoming immobilized in mud, soft soil, or uneven terrain. The tracked highflow pumping robot can climb slopes up to 35 degrees, traverse vertical obstacles up to 250 mm, and operate in water depths reaching 650 mm. These capabilities are essential for urban flood control, construction sites, and emergency rescue operations where traditional wheeled vehicles would struggle to maintain stability and traction.

High-Flow Drainage Capacity and Independent Pump Control

In addition to mobility, the tracked highflow pumping robot offers remarkable drainage performance. The dual hydraulic pump system can operate either independently or simultaneously, providing operational flexibility based on the water volume and site conditions. Single-pump operation conserves energy when moderate drainage is sufficient, while dual-pump operation maximizes flow rate for rapid water removal. The system supports a maximum head of 12 meters, ensuring effective drainage in both shallow and deep water scenarios. This high-flow capacity makes the robot particularly suitable for large-scale urban flood management, river channel maintenance, and emergency water clearing in industrial facilities.

Remote Control Operation and Safety Features

The tracked highflow pumping robot is equipped with a wireless remote control system, allowing operators to control movement, pump operation, and hydraulic output from a safe distance up to 300 meters. This remote capability minimizes the exposure of personnel to hazardous environments such as submerged tunnels, flooded streets, or contaminated water zones. The robot also features an integrated safety monitoring system, including wading alarms, hydraulic oil level alerts, and engine temperature monitoring. These measures ensure that the equipment operates safely and efficiently, even in demanding emergency conditions.

Multi-Functionality through Hydraulic Output Ports

Beyond its drainage capabilities, the tracked highflow pumping robot functions as a mobile hydraulic power source. Multiple hydraulic output ports provide energy to ancillary tools such as hydraulic breakers, cutting saws, and other equipment. This multi-functionality enhances its operational value, allowing it to support collaborative emergency and rescue operations. In disaster scenarios, the robot can simultaneously manage water removal and provide power for onsite hydraulic tools, increasing the overall efficiency and effectiveness of response teams.

Technical Specifications

Applications and Operational Scenarios

The tracked highflow pumping robot demonstrates versatility across multiple scenarios:

• Urban Emergency Drainage: Effective in low-lying urban areas, underpasses, and underground parking structures.
• Field Operations and Rescue: Ideal for riverbanks, farmland, and construction sites requiring rapid water removal.
• Industrial and Municipal Facilities: Supports temporary water clearing during factory maintenance or pipeline repair.
• Disaster Sites: Provides hydraulic power and drainage assistance during flood or emergency rescue operations.

Integration of Company Expertise

Wuhu Qisheng Intelligent Equipment Co., Ltd. is a professional designer and manufacturer of high-end hydraulic equipment focusing on emergency, rescue, agricultural water conservancy, environmental protection, and other fields. By leveraging extensive R&D experience, the company ensures that the tracked highflow pumping robot is not only technically advanced but also highly reliable in field operations. The company’s efficient production system and professional design capabilities allow for rapid adaptation to market demands, providing customized solutions that meet the diverse operational needs of emergency rescue and environmental management. Wuhu Qisheng Intelligent Equipment Co., Ltd. has deeply integrated its core competencies into the development of this robot, ensuring strong performance and safety across all operational scenarios.

Advantages Over Wheeled Alternatives

Compared to wheeled pumping equipment, tracked machines offer several critical benefits. Tracks distribute weight more evenly, minimizing ground pressure and reducing the likelihood of sinking into soft surfaces. They provide superior traction on slopes and uneven terrain, enabling operation where wheeled vehicles may fail. In addition, tracked systems can navigate obstacles and maintain stability in challenging conditions, enhancing operational efficiency and reducing downtime during emergency responses. The tracked highflow pumping robot exemplifies these advantages, ensuring that high-capacity drainage and hydraulic support are delivered reliably across a wide range of terrains.

Design Considerations for Emergency Use

The design of the tracked highflow pumping robot prioritizes operational resilience. Its diesel-powered system ensures independence from external electricity, while dual pumps offer operational flexibility to match site requirements. The integrated remote control system enhances safety, and the robot’s hydraulic output ports enable multitasking in emergency scenarios. Additionally, onboard features such as a hydraulic winch and lighting facilitate nighttime operations, ensuring that the robot can be deployed efficiently at any time. These design choices reflect a comprehensive approach to creating equipment that can meet the rigorous demands of both urban and field emergency operations.

Conclusion

The tracked highflow pumping robot represents a specialized solution for high-flow drainage and hydraulic support in complex environments. Its tracked mobility system, dual hydraulic pumps, and remote operation capabilities make it an indispensable tool for emergency management, field rescue, and industrial applications. By integrating robust engineering, operational flexibility, and advanced safety systems, this robot demonstrates why tracks are superior to wheels for heavy pumping equipment in challenging conditions. With Wuhu Qisheng Intelligent Equipment Co., Ltd.'s commitment to technological innovation and quality manufacturing, this equipment ensures reliable, efficient, and safe performance across a variety of emergency and operational scenarios.

FAQ

Q1: What terrains can the tracked highflow pumping robot operate on?

The robot can operate on mud, uneven surfaces, slopes up to 35°, vertical obstacles up to 250 mm, and wading depths up to 650 mm. Its tracked system provides superior traction and stability in challenging environments.

Q2: Can the pumps be operated independently?

Yes, the dual hydraulic pumps can operate either individually or simultaneously. Single-pump operation is energy-efficient, while dual-pump operation maximizes the drainage flow rate up to 1300 m³/h.

Q3: How is the robot controlled remotely?

The tracked highflow pumping robot is equipped with a wireless remote control system that allows operators to control movement, pump operation, and hydraulic output from a distance of up to 300 meters, ensuring safety in hazardous environments.

Q4: Can the robot provide hydraulic power for other tools?

Yes, multiple hydraulic output ports allow the robot to power other hydraulic equipment, such as breakers or cutting saws, making it multifunctional in emergency and rescue operations.

Q5: How long can the robot operate continuously?

With a fuel tank capacity of 50 L and a hydraulic oil tank of 70 L, the robot can operate continuously for approximately 8 hours under typical conditions.
