35HP HighFlow Portable Hydraulic Power Unit (HPU)
Product Model: HP(QSD35HP)
The 35HP HighFlow Portable Hydraulic Power Unit is a heavy-duty mobile hydraulic unit powered by a 35 HP twin-cylinder engine. It is designed for demanding applications such as large-scale pipeline emergency repairs, heavy pavement breaking, emergency flood control, and heavy construction operations. The unit features a triple-circuit hydraulic system design, enabling simultaneous operation of two hydraulic tools for coordinated work, significantly enhancing on-site efficiency. Equipped with a one-button start electronic control system, it simplifies the operation process and reduces site preparation time. Large-capacity fuel (27L) and hydraulic (22L) tanks support extended continuous operation, minimizing refueling frequency. An oil drain port is located at the base of the unit for convenient hydraulic oil changes and maintenance. With overall dimensions of 1130×660×845 mm and a weight of 205 kg, it balances high power output with on-site maneuverability.
- Product Details
- About Qisheng
- Contact Us
HPU-35 SERIES CE / EPA COMPLIANT

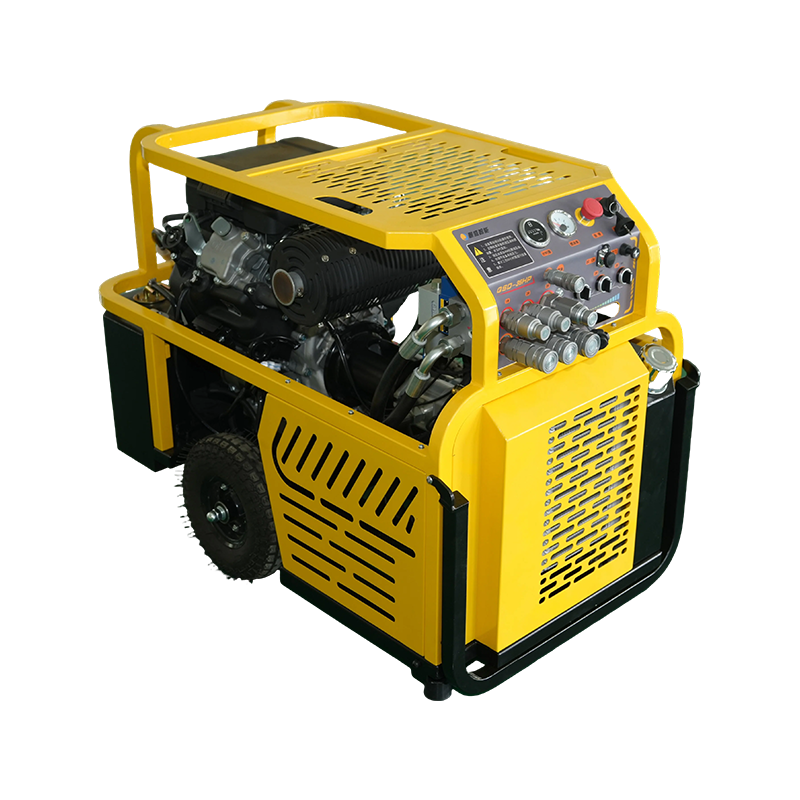

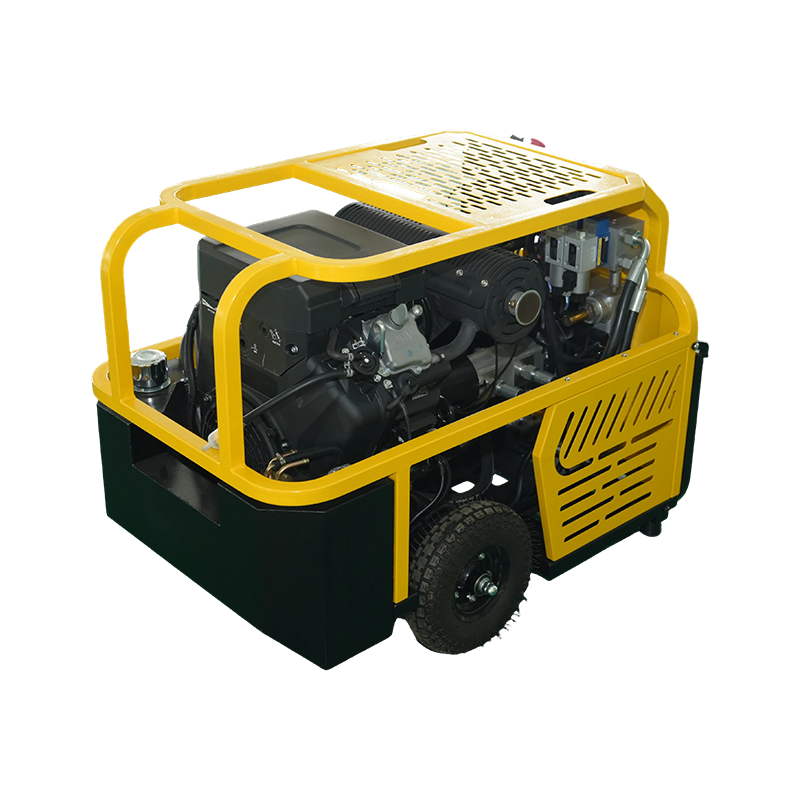

35HP HighFlow Portable Hydraulic Power Unit
Engine-driven dual-circuit platform for high-demand hydraulic tool arrays and rapid response dewatering.
The 35HP HighFlow Portable Hydraulic Power Unit is built for continuous duty in demanding industrial, municipal, and emergency response environments. Its 35 HP V-twin engine drives a high-displacement gear pump that delivers up to 60 L/min at 175 bar, supporting two independent tool circuits without cross-interference. The open steel frame accommodates a 22 L hydraulic reservoir and forced-air cooling, while the front control manifold consolidates pressure gauges, circuit valves, and quick-release couplers. The unit is configured for forklift pockets and a fold-down handle, allowing rapid repositioning across job sites and transport between locations.
Core Advantages
01
High-displacement dual-circuit architecture
Two independent output circuits permit simultaneous tool operation. The manifold allows flow distribution to be adjusted between circuits without shutdown, supporting multi-tool workflows on a single power source.
02
Industrial V-twin engine with forced cooling
The 35 HP engine is paired with a high-capacity axial fan and open frame ventilation, maintaining hydraulic oil temperature during extended high-flow operations. The engine bay is isolated from the control manifold for thermal separation.
03

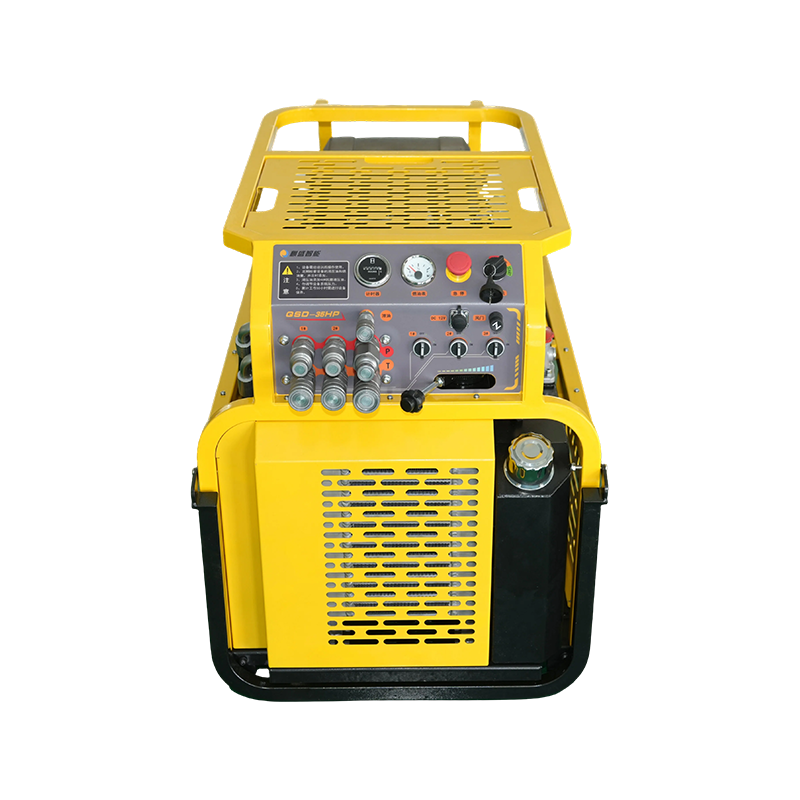

Front-mounted control and connection manifold
All circuit valves, pressure gauges, and quick couplers are grouped on a single front panel. Operators can monitor system pressure, adjust circuit flow, and connect tools without accessing the engine compartment.
04
Reinforced open frame with forklift pockets
The tubular steel frame includes integrated forklift slots and a fold-down handle. The open design provides unrestricted access to engine, pump, and reservoir for routine inspection and maintenance.
Technical Specifications
Engine Type35 HP V-twin gasoline / diesel
Hydraulic Pressure175 bar (max)
Flow Rate60 L/min (combined)
Hydraulic Tank22 L
Fuel Tank25 L
Dimensions1150 × 700 × 850 mm
Weight190 kg
StartingElectric start
CoolingForced air / axial fan
ConnectionsDual quick couplers
Deployment Scenarios
Pipeline Network Maintenance
Supports simultaneous breaking and dewatering operations at pipeline repair sites, reducing the need for multiple power sources.
Bridge and Road Rehabilitation
Drives concrete cutters, breakers, and compactors for deck removal, joint repair, and surface restoration.
Flood Response Operations
Powers high-flow submersible pumps for rapid water extraction in urban flooding, tunnels, and basement structures.
Remote Infrastructure Works
Provides independent hydraulic power for tool arrays in locations without access to grid electricity.
Operational & Maintenance Inquiries
The manifold distributes flow between the two circuits. When both circuits are active, pressure and flow are balanced according to tool demand. Each circuit is rated for 175 bar, though combined flow of 60 L/min is shared between outputs.
Hydraulic oil and filter replacement is recommended every 500 operating hours or annually. The hour meter on the control panel provides a cumulative record for scheduling. Inspect quick couplers and hoses for wear at each refueling.
The standard quick couplers conform to mainstream hydraulic tool connection specifications. Flow and pressure can be adjusted at the manifold to match tool requirements. Consult the tool manufacturer's specifications for compatibility.
The steel frame includes forklift pockets for mechanical handling and a fold-down handle for manual repositioning. The unit can be loaded onto flatbed vehicles or trailers using the forklift slots.
| Model | Working Pressure (bar) | Output Flow (Lpm) | Dimensions (mm) | Hydraulic Oil Tank Capacity (L) | Fuel Tank Capacity (L) | Weight (kg) | Starting Method |
| QSD-13HP/C | 155 | 20/30 | 799*713*770 | 12 | 6.5 | 80 | Manual Start |
| QSD-18HP/C | 155 | 20/40 | 1050*640*790 | 16 | 20 | 178 | Electric Start |
| QSD-23HP/C | 175 | 30/40 | 1100*660*800 | 22 | 20 | 185 | Electric Start |
| QSD-35HP/C | 175 | 40/80 | 1130*660*845 | 22 | 27 | 205 | Electric Start |
| QSD-80HP/C | 200 | 80/120 | 1750*1100*1350 | 40 | 50 | 450 | Electric Start |
Wuhu Qisheng Intelligent Equipment Co., Ltd. is a professional designer and manufacturer of high-end hydraulic equipment focusing on emergency, rescue, agricultural water conservancy, environmental protection and other fields. Deeply engaged in the hydraulic equipment industry, we keep up with the industry development trend and empower efficient operations in various fields with professional strength to promote high-quality industrial development. The company's core competitiveness lies in its strong technological and production capabilities. We have a team of senior professional R&D engineers, all of whom have rich practical experience in industry development. Deeply rooted in the R&D field of hydraulic equipment, they accurately grasp the industry's technical pain points and demand directions, providing solid support for product innovation and upgrading. At the same time, the company is equipped with an efficient production system, realizing the efficient connection between R&D and production, which can quickly respond to market changes, timely meet the diverse needs of different customers, and ensure delivery efficiency and product stability.
In terms of product layout, the company focuses on the core field of emergency rescue hydraulic equipment. The developed products cover multiple categories such as hydraulic power stations, slurry pumps, integrated and portable water pump equipment, and hydraulic breakers. With comprehensive functions, the products can be widely used in various scenarios such as drainage, dredging, forest fire fighting, cutting, drilling, and sand suction, adapting to the actual operation needs of core fields such as emergency rescue and environmental construction. With the advantages of non-electric drive, high lift, strong wear resistance and easy mobility, they have become "hardcore equipment" under complex working conditions. Relying on strong design and development capabilities, the company not only provides high-quality standardized products, but also deeply understands customers' specific working condition needs, provides full-process customized R&D solutions, and tailors exclusive hydraulic equipment to effectively solve customers' personalized operation problems.
Upholding the development philosophy of "promoting the development of emergency rescue hydraulic equipment and leading the technological innovation of the industry", the company always adheres to the original intention of quality, focuses on customers' core demands, and is committed to providing customers with high-quality, highly competitive products, customized solutions and comprehensive services. With reliable product performance and professional service guarantee, we create sustainable value for customers, deeply cultivate the industry, forge ahead steadily, and strive to become a trusted strategic partner of customers in the high-end hydraulic equipment field.
About Qisheng
Wuhu Qisheng Intelligent Equipment Co., Ltd.
Wuhu Qisheng Intelligent Equipment Co., Ltd. is a professional designer and manufacturer of high-end hydraulic equipment for emergency, rescue, agriculture, and environmental protection. Our core competitiveness lies in a senior R&D team with deep industry expertise and an efficient production system that ensures rapid market response and product stability.
We are China 35HP HighFlow Portable Hydraulic Power Unit (HPU) Suppliers and Wholesale 35HP HighFlow Portable Hydraulic Power Unit (HPU) Exporter, Company.
Focusing on emergency rescue, our product range includes hydraulic power stations, slurry pumps, portable water pumps, and breakers. These "hardcore" tools feature non-electric drive, high lift, and wear resistance, making them ideal for drainage, dredging, and forest firefighting. Beyond standardized products, we provide full-process customized R&D solutions to solve specific operational challenges.
Upholding the philosophy of leading technological innovation, we prioritize quality and customer demands. We are committed to delivering high-performance products and professional services, striving to be a trusted strategic partner in the high-end hydraulic equipment field.
Certificate Of Honor
Latest Updates
-
Industry News
2026.11.06
Two hydraulic breakers leave the depot behind the same 35 HP power pack. One hammers at its rated blow rate for a full shift. The other stalls at roughly 1,100 blows per minute, runs hot, and darkens the return filter inside three hours. The breaker is the s... -
Industry News
2026.11.04
At 04:10 a municipal crew reaches a flooded underpass holding 1.4 metres of standing water. The truck-mounted set they brought needs a suction line, a priming cycle and a dry, stable power feed at the rim before a single litre moves. The hydraulic drainage r...
-
Industry News
2026.10.30
A drainage operation at an industrial plant rarely fails because the pump lacks power. It fails because the pump cannot reach the water, cannot be positioned safely, or cannot keep running on unstable ground. Drainage robots for industrial water management ca...
35HP HighFlow Portable Hydraulic Power Unit (HPU) Industry knowledge
How Does a HighFlow Portable Hydraulic Power Unit Improve Operational Efficiency?
In modern industrial applications, operational efficiency depends heavily on reliable hydraulic performance. A highflow portable hydraulic power unit is designed to provide stable hydraulic output while maintaining mobility, flexibility, and rapid deployment. Whether used in emergency rescue, agricultural water conservancy, environmental protection projects, or industrial maintenance, this equipment significantly improves work continuity and reduces downtime.
Unlike fixed hydraulic systems, a portable hydraulic power pack offers immediate usability in remote or changing work environments. Its compact structure allows operators to quickly transport and deploy power where traditional systems cannot easily reach. This reduces setup delays and ensures tasks can begin immediately.
Wuhu Qisheng Intelligent Equipment Co., Ltd., as a professional designer and manufacturer of high-end hydraulic equipment, focuses on delivering advanced hydraulic solutions for emergency response, rescue systems, agricultural infrastructure, and environmental engineering. By closely following industry development trends, the company empowers efficient operations through technological innovation and reliable production capacity.
Key Functional Advantages of HighFlow Portable Hydraulic Power Units
| Function | Operational Benefit | Application Scenario |
|---|---|---|
| High-flow hydraulic output | Drives heavy tools efficiently | Rescue equipment, hydraulic breakers |
| Portable design | Easy transportation and deployment | Field operations, remote sites |
| Stable pressure control | Improves operational precision | Industrial maintenance |
| Rapid start-up system | Reduces preparation time | Emergency response |
| Durable structural design | Extends service life | Harsh outdoor environments |
The efficiency improvement mainly comes from consistent hydraulic energy delivery. A high-performance portable hydraulic power unit minimizes pressure fluctuations, allowing connected hydraulic tools to maintain steady force output. This consistency improves task accuracy and reduces operational interruptions caused by unstable pressure.
Material Comparison and Structural Reliability
The durability of a highflow portable hydraulic power unit depends greatly on material selection.
| Material Type | Performance Characteristics | Suitable Environment |
|---|---|---|
| High-strength steel | Maximum structural stability | Heavy-duty industrial use |
| Aluminum alloy | Lightweight and corrosion-resistant | Mobile field operations |
| Composite casing | Shock absorption and insulation | Extreme outdoor conditions |
Wuhu Qisheng Intelligent Equipment Co., Ltd. integrates advanced material engineering into product development. Its senior R&D engineers possess extensive practical experience and deeply understand hydraulic system challenges. This enables continuous optimization of product structure, thermal management, and long-term operational reliability.
How It Enhances Workflow Efficiency
A highflow hydraulic power pack improves productivity through several direct mechanisms:
- Reduced manual handling time through compact mobility
- Faster hydraulic tool activation for immediate operation
- Lower maintenance interruptions due to robust internal design
- Adaptability across multiple applications with flexible hydraulic interfaces
For industries where response speed is critical, such as rescue operations or environmental maintenance, these advantages translate into measurable workflow improvements.
Qisheng strengthens this efficiency through its integrated production system, which ensures fast conversion from R&D design to manufacturing delivery. This efficient connection allows the company to respond rapidly to customer requirements while maintaining product consistency and delivery stability.
FAQ
1. What is a highflow portable hydraulic power unit used for?
It powers hydraulic tools in mobile or remote applications such as rescue, maintenance, construction, and water conservancy operations.
2. Why does high-flow output improve efficiency?
Higher flow delivers faster actuator response and smoother tool operation, reducing task completion time.
3. What industries benefit most from portable hydraulic power packs?
Emergency rescue, agriculture, environmental protection, industrial maintenance, and infrastructure engineering.
4. How important is material quality in hydraulic power units?
Material quality affects durability, portability, heat resistance, and long-term operational reliability.
5. What should users consider when choosing a portable hydraulic power unit?
Flow capacity, pressure stability, portability, structural durability, and manufacturer technical support are key factors.
