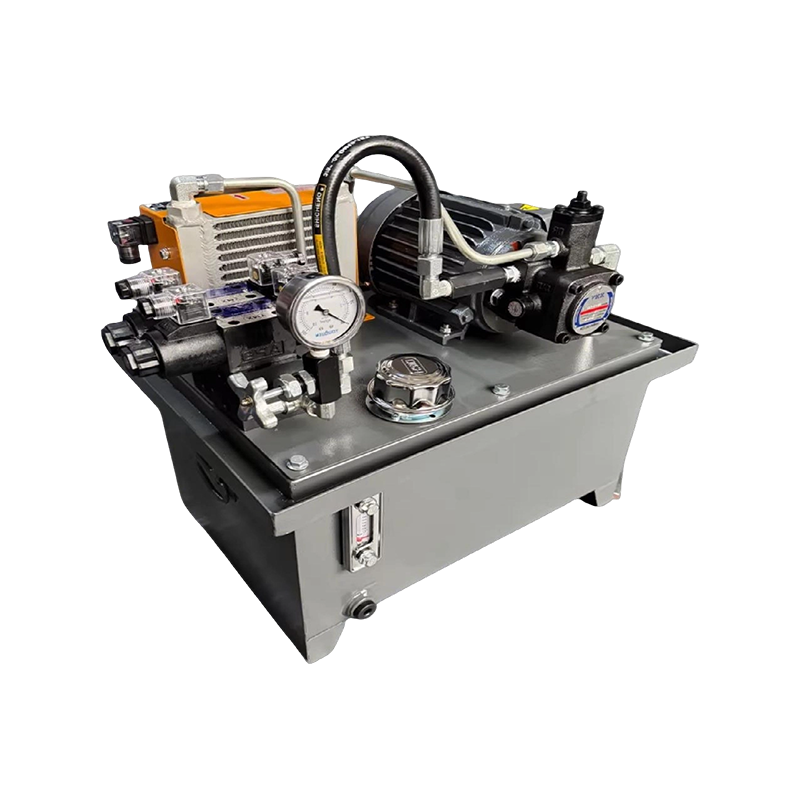

4KW/A Electric Hydraulic Power Unit (EHPU)

Where Electric Drive Makes Sense in Hydraulic Power Unit Selection

The choice between electric and engine-driven hydraulic power units is rarely a simple preference—it reflects the operational environment, duty cycle, available infrastructure, and the consequences of downtime. Electric motor-driven HPUs hold a clear advantage in any setting where grid power or a reliable generator supply is available and where clean, consistent operation is a priority.

At the 4 kW power level, an electric drive configuration is particularly well-suited to intermittent and semi-continuous duty applications where the motor starts and stops in response to system demand. Unlike internal combustion engines, which incur mechanical wear and fuel consumption even during idle periods, an electric motor draws power only when actively driving the pump—making it inherently more efficient for applications with variable load profiles such as hydraulic press operations, small-scale lifting systems, or controlled-flow irrigation valves.

Electric HPUs also eliminate combustion emissions, fuel storage requirements, and exhaust heat—factors that matter significantly in enclosed facilities, indoor industrial environments, or sensitive agricultural settings. For a 4KW/A Electric Hydraulic Power Unit, Wuhu Qisheng Intelligent Equipment Co., Ltd. applies the same precision engineering standards used across its high-power equipment range, ensuring that compact electric units deliver the reliability and operational consistency that demanding applications require.

Understanding the "A" Configuration in Compact Electric HPUs

In hydraulic power unit nomenclature, configuration letters such as "A" denote specific design variants—typically relating to reservoir orientation, valve arrangement, or mounting style. The "A" designation in compact electric HPUs commonly indicates a vertical reservoir configuration where the motor mounts directly on top of the hydraulic tank, creating a minimal footprint unit that can be integrated into machine frames, mounted on equipment decks, or installed in space-constrained enclosures where a conventional horizontal layout would be impractical.

This vertical stacking arrangement offers several practical engineering advantages worth understanding when evaluating a unit for a specific application:

• Reduced floor footprint — vertical units typically occupy 40–60% less floor or mounting area than equivalent horizontal configurations, enabling integration into machinery designs where space budgets are tight.
• Direct pump submersion or close-coupled pump mounting — in many vertical designs the pump is submerged in the reservoir or close-coupled directly below the motor, shortening the suction line and reducing the risk of cavitation at startup.
• Simplified plumbing layout — with motor, pump, and reservoir in a vertical stack, pressure and return port locations can be standardized, reducing custom hose routing in OEM machine integration projects.
• Motor cooling considerations — in a vertical mount, motor heat rises away from the reservoir rather than conducting downward into the fluid, which can have a modest positive effect on fluid operating temperature in lightly loaded applications.

When comparing HPU models across suppliers, confirming what a configuration letter specifically denotes in that manufacturer's nomenclature system—rather than assuming a standard meaning—prevents specification errors that are difficult to correct after equipment is delivered.

Matching Motor Electrical Specification to Site Power Supply

A 4 kW electric motor is available in a wide range of voltage and phase configurations—single-phase 220V, three-phase 220V, three-phase 380V, and various international voltage standards—and selecting the correct variant for your available power supply is a fundamental procurement step that is easy to overlook when focusing on hydraulic performance parameters.

Beyond voltage matching, motor protection class (IP rating) should align with the installation environment. An IP54-rated motor is adequate for most indoor industrial settings with incidental dust and splash exposure, while outdoor or wash-down environments typically require IP55 or IP65 to prevent moisture ingress into motor windings—a common cause of insulation failure that is entirely preventable with correct initial specification.

Practical Integration Tips for Compact Electric HPUs in OEM and Field Applications

Compact electric HPUs at the 4 kW level are frequently integrated into OEM machine builds or retrofitted into existing equipment rather than deployed as standalone units. This integration context introduces practical engineering details that influence long-term performance and serviceability in ways that a standalone installation does not.

Vibration isolation deserves particular attention in machine-integrated installations. When an HPU is rigidly bolted to a fabricated steel frame that also carries other mechanical components, motor and pump vibration transmits through the structure and can accelerate fatigue cracking at weld joints, loosen hydraulic fittings, and create audible noise amplification. Anti-vibration mounts between the HPU base and the machine frame are a low-cost measure with a disproportionately positive effect on long-term mechanical integrity.

Reservoir access in integrated installations also requires advance planning. Oil level inspection, fill port access, and drain valve clearance must remain accessible after the HPU is installed in its final position—a requirement that is straightforward to accommodate at the design stage but difficult and expensive to address retroactively. Reviewing the HPU dimensional drawings against the machine envelope during the design phase, rather than at installation, avoids service access problems that persist throughout the equipment's operational life.

For projects requiring tailored configurations—specific port locations, non-standard reservoir volumes, integrated directional valve manifolds, or modified mounting interfaces—the engineering team at Wuhu Qisheng Intelligent Equipment Co., Ltd. works directly with OEM customers to develop customized solutions around the core 4KW/A Electric Hydraulic Power Unit platform, ensuring that compact electric HPUs fit their intended application precisely rather than requiring field modifications after delivery.
